Wire Rods

Wire Rods

Wire Rods
+
  • Wire Rods
1. Commodity, Materials, Size, Applications, Features & Delivery Conditions:
Commodity HRAP wire rods for thin wire and super-thin wire HRP wire rods for welding materials Wire Rods for cold heading
Materials 201, 201Cu, 202, 130M,202M, XM-1, 204Cu, 302, 303, 303Cu, 304, 304L, 304M, 304M2, 304M3, 304H, 304N, 304LN, 305, 309, 309S, 310S, 314, 316, 316L, 316LN, 317, 317L, 316Ti, 321, 904L, 430, 409Nb, 631, S32101, S32304 ER307, ER307Ti, SUSY308, ER308, ER308Si, SUSY308L, ER308L, ER308LSi, ER308Mo, ER308LMo, SUSY309, ER309, ER309Si, SUSY309L, ER309L, ER309LSi, ER309Mo, ER309LMo, SUSY310, ER310, SUSY310S, SUSY316, ER316, ER316Si, ER316H, SUSY316L, ER316L, ER316LSi, ER317, ER317L, ER318, ER321, ER347, ER347Si, ER385, ER2209, ER2553, ER2594 201Cu, 204Cu, 304, 304L, 304D, 304HC1, 304HC, 304HC3, 304ES, 302HQ, 305, 316, 316L, 316LCu, 409Nb, 430
Size φ5.5mm φ5.5~8.0mm φ5.5~20.0mm
Applications To produce thin and super thin wire applied for filter mesh in petro-oil, chemical, food, pharmacy, aviation, aircraft, non-woven cloth, bullet-proof clothes. The welding materials applied in chemical, petrochemical, chemical fiber, pulp, food, pharmacy, transportation, building, and power industries.
Features MF-AOD-LF refinery, less inclusions elements, high purity, stable chemical containment, good yieldability, high corrosion-resistant properties, good mechanicability. MF+AOD+LF refinery+ continuous casting ( or MF+AOD+ mould casting) , less inclusions elements, high purity, stable chemical containment, good weldability, high corrosion-resistant properties, good mechanicability.
Delivery Conditions HRP, HRAP, HR+Solution Allealing+Pickling HRP, HRAP, HR+Solution Allealing+Pickling HRP, HRAP, HR+Solution Allealing+Pickling
Coil Weight 700kgs to 1400kgs; other weight will be delivered upon negotiation.
Surface Quality 1. No obvious defections on surface, no leakages, no folds, no inclusions, no scars, and no rolling edges.
2. When the surface defections are removable, the depth to remove less than 1/4 of o.d.sizetolerance, the width more than 5 times of depth.

2. Size and roundness tolerance:
O.D.(mm) Tolerance(mm) Out-of- roundness(mm)
≥ 5.0 ～ 10.0 ±0.15 ≤0.20
≥ 10.0 ～ 16.0 ±0.18 ≤0.28
≥ 16.0 ～ 25.0 ±0.20 ≤0.35
≥ 25.0 ～ 30.0 ±0.25 ≤0.40
≥ 30.0 ～ 40.0 ±0.30 ≤0.45

3. Scratches, pittings and holes are allowed but the depth should be within below table:
O.D. of wire rods(mm) 5.5～10.0 ＞10.0～18.0
Permitted depth of defections/mm Group Ⅰ ≤0.07 ≤0.10
Group Ⅱ ≤0.10 ≤0.15
Group Ⅲ ≤0.15 ≤0.18
When ordering, Group Ⅲ will be applied unless otherwise specified.

4. Applications for Wire rods:
Item UNS No. Grade Applications
Wires Spring wires Cold heading
1 S11710 10Cr17 ○   ○
2 S11717 Y10Cr17 ○
3 S11790 10Cr17Mo ○
4 S40500 405 ○
5 S40976 - ○
6 S44400 - ○
7 S44600 446 ○
8 S44700 - ○
9 S44800 - ○
10 S44535 - ○
11 - D665A     ○
12 - D665B     ○
13 - D666 ○
14 - D667     ○
15 - D668 ○
16 - D669 ○
17 - 808B ○
18 - 200Cu     ○
19 - 200Cu1 ○
20 - 201Cu     ○
21 - 201Cu1 ○
22 - 201Cu2     ○
23 - 201Cu3     ○
24 - 202B ○
25 S20161 - ○
26 S20910 XM-19 ○
27 S21400 XM-31 ○
28 S21800 - ○
29 S21900 XM-10 ○
30 S21904 XM-11 ○
31 S24000 XM-29 ○
32 S24100 XM-28 ○ ○
33 S28200 - ○
34 S35350 12Cr17Mn6Ni5N ○
35 S35450 12Cr18Mn8Ni5N ○
36 S35550 20Cr15Mn15Ni2N ○
37 S30210 12Cr18Ni9 ○ ○
38 S30215 12Cr18Ni9Si2 ○
39 - 302HQ     ○
40 S30317 Y12Cr18Ni9 ○
41 S30327 Y12Cr18Ni9Se ○
42 - SUS303Cu ○   ○
43 S30403 00Cr19Ni10 ○   ○
44 S30408 06Cr19Ni10 ○ ○ ○
45 S30409 07Cr19Ni10 ○
46 S30458 06Cr19Ni10N ○
47 - 304H
48 - 304HC1     ○
49 S30480 304HC ○   ○
50 S30488 06Cr19Ni9Cu3     ○
51 - 304ES ○
52 - 304M ○
53 - 304M2 ○
54 - 304M3 ○
55 - 304B ○
56 - 304B1 ○
57 - 304S ○
58 - SUS304N1 ○
59 S30508 06Cr18Ni12 ○   ○
60 S30510 10Cr18Ni12 ○ ○ ○
61 S30808 06Cr20Ni11 ○
62 - SUSXM15J1 ○
63 S30908 06Cr23Ni13 ○
64 S30920 16Cr23Ni13 ○
65 S31008 06Cr25Ni20 ○
66 S31020 20Cr25Ni20 ○
67 S31420 20Cr25Ni20Si2 ○
68 S31603 022Cr17Ni14Mo2 ○   ○
69 S31608 06Cr17Ni12Mo2 ○ ○ ○
70 S31609 07Cr17Ni12Mo2 ○
71 - SUS316F ○
72 - 316N ○
73 - 316NC ○
74 S31683 022Cr18Ni14Mo2Cu2     ○
75 S31688 06Cr18Ni14Mo2Cu2     ○
76 S31703 022Cr19Ni13Mo3 ○
77 S31708 06Cr19Ni13Mo3 ○
78 S31753 022Cr19Ni13Mo4N ○
79 S31793 022Cr19Ni13Mo3 ○
80 S32168 06Cr18Ni11Ti ○
81 S32169 07Cr18Ni11Ti   ○
82 S34778 06Cr18Ni11Nb ○ ○
83 S34779 07Cr18Ni11Nb ○
84 S34878 06Cr18Ni9Cu2     ○
85 S34888 06Cr18Ni9Cu3     ○
86 S38408 06Cr16Ni18 ○   ○
87 - SUSXM7     ○
88 - SUH330 ○
89 S40310 12Cr12 ○
90 S41008 06Cr13 ○
91 S41010 12Cr13 ○   ○
92 - SUS410F2 ○
93 S41410 12Cr13Ni2 ○
94 S41427 Y25Cr13Ni2 ○
95 S41617 Y12Cr13 ○
96 S42020 20Cr13 ○
97 S42030 30Cr13 ○ ○
98 S42037 Y3Cr13 ○
99 S42040 40Cr13 ○
100 - S420F2 ○
101 S43110 14Cr17Ni2 ○   ○
102 S43120 17Cr16Ni2 ○
103 S45710 13Cr13Mo ○
104 S45830 32Cr13Mo ○
105 S47310 13Cr11Ni2W2MoV ○
106 S45500 XM-16   ○
107 S51240 07Cr12Ni4Mn5Mo3Al   ○
108 S51570 07Cr15Ni7Mo2Al   ○
109 S51770 07Cr17Ni7Al ○ ○
110 S20430 -   ○

5. Mechanical properties for solution treated Austenic stainless steel wire rods:
Item UNS No Grades Rm
N/mm2		 A/% Z/%
1 D666 06Cr13Mn16 520～680 ≥35 ≥40
2 D667 06Cr13Mn13Ni 520～680 ≥35 ≥40
3 S35350 12Cr17Mn6Ni5N 520～680 ≥40 ≥45
4 S35450 12Cr18Mn8Ni5N 520～680 ≥40 ≥45
5 S35550 20Cr15Mn15Ni2N 520～680 ≥40 ≥40
6 S30210 12Cr18Ni9 520～650 ≥40 ≥60
7 S30215 12Cr18Ni9Si2 520～680 ≥40 ≥50
8 302HQ 022Cr18Ni9Cu3 480～560 ≥40 ≥65
9 S30317 Y12Cr18Ni9 520～650 ≥40 ≥50
10 S30327 Y12Cr18Ni9Se 520～650 ≥40 ≥50
11 303Cu   520～620 ≥40 ≥60
12 S30403 00Cr19Ni10 480～600 ≥40 ≥65
13 S30408 06Cr19Ni10 520～640 ≥40 ≥60
14 304C1 0Cr19Ni9Cu1 480～590 ≥40 ≥65
15 S30480 06Cr18Ni9Cu2 480～580 ≥40 ≥65
16 S30488 06Cr19Ni9Cu3 480～580 ≥40 ≥65
17 304ES 06Cr16Mn3Ni7Cu3 520～620 ≥40 ≥65
18 S30409 07Cr19Ni10 520～650 ≥40 ≥60
19 304M 06Cr19Ni9 480～620 ≥40 ≥65
20 304S 022Cr19Ni11 480～580 ≥40 ≥65
21 S30508 06Cr18Ni12 480～640 ≥40 ≥60
22 S30510 10Cr18Ni12 480～640 ≥40 ≥60
23 S30808 06Cr20Ni11 520～650 ≥40 ≥60
24 S30920 16Cr23Ni13 520～680 ≥40 ≥50
25 S30908 06Cr23Ni13 520～650 ≥40 ≥60
26 S31020 20Cr25Ni20 550～680 ≥40 ≥40
27 S31008 06Cr25Ni20 520～620 ≥40 ≥50
28 S31420 20Cr25Ni20Si2 550～700 ≥40 ≥40
29 S31603 022Cr17Ni14Mo2 480～580 ≥40 ≥65
30 S31608 06Cr17Ni12Mo2 520～600 ≥40 ≥65
31 S31609 07Cr17Ni12Mo2 520～620 ≥40 ≥60
32 S31703 022Cr19Ni13Mo3 480～600 ≥40 ≥65
33 S31708 06Cr19Ni13Mo3 520～620 ≥40 ≥65
34 S32100 10Cr18Ni9Ti 520～650 ≥40 ≥60
35 S32168 06Cr18Ni11Ti 520～620 ≥40 ≥65
36 S34778 06Cr18Ni11Nb 520～650 ≥40 ≥60
37 S34779 07Cr18Ni11Nb 520～680 ≥40 ≥60
38 S34878 06Cr18Ni9Cu2 480～580 ≥40 ≥65
39 S34888 06Cr18Ni9Cu3 480～580 ≥40 ≥65

6. Sampling Tests:
The below items marked with “*”are done only when they are specified in contracts; otherwise, inspections, samplings and testing methods should apply below table:
Item Testing Sampling quantity Sampling method and parts Test methods
1 Surface Per coil -
2 Size Per coil -
3 Chemical 1 per heat GB/T 20066
4 Tensile * 2 per lot GB/T2975
5 Hardness* 2 per lot Different coil
6 Grain sizes* 1 per lot Random coil
7 Metallographic* 1
8 Non-metal inclusion* 2
9 Salt spray test* 2 Random coil
10 Radiation Test * 2 Random coil
11 Magnetic 2 Random coil

7. Packaging Descriptions:

1, 2 － Pasteboard for Side-Ring Protection
3 － Flat Steel Band
4 － Rust-Proofing Paper
5 － Precoated Braid or Adhesive Membrane
6,7 － Adhesive Tape
Mill packing may be different from standard packing which is only applied when specified by contract.

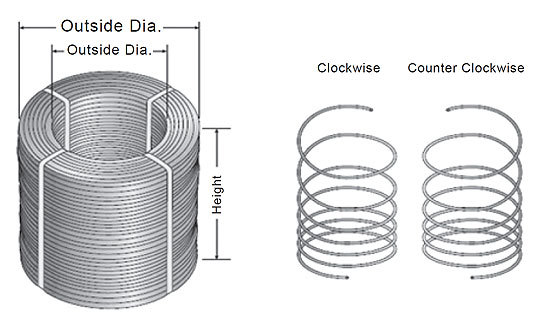

8. Direction of Rotation:
